TD04HL 18G 50.38/68.00mm 6+6 blades forward high performance turbo milling/billet compressor wheel for

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : TD04HL 18G

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000pcs

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1.Model:TD04HL 18G

2.TD04HL 18G 50.38/68.00mm 6+6 blades forward high performance turbo billet/milling compressor wheel for

3.Size:

Nose diamter:13.99mm

inducer:50.38mm

Exduder:68.00mm

Tapered tip exducer:72.45mm

Tip height:4.85mm

Superback:1.90mm

bore size :5.00mm

Trailing Angle:45

Cutback:0.00

Blade height:22.94mm

Splitter height:15.60mm

sp height angle:-4.00

overall height:26.50mm

It is custom size,please check carefully before buying.

6+6 blades

Forward rotation

Tapered tip angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

TD04HL 18G 50.38/68.00mm 6+6 blades forward high performance turbo milling/billet compressor wheel for

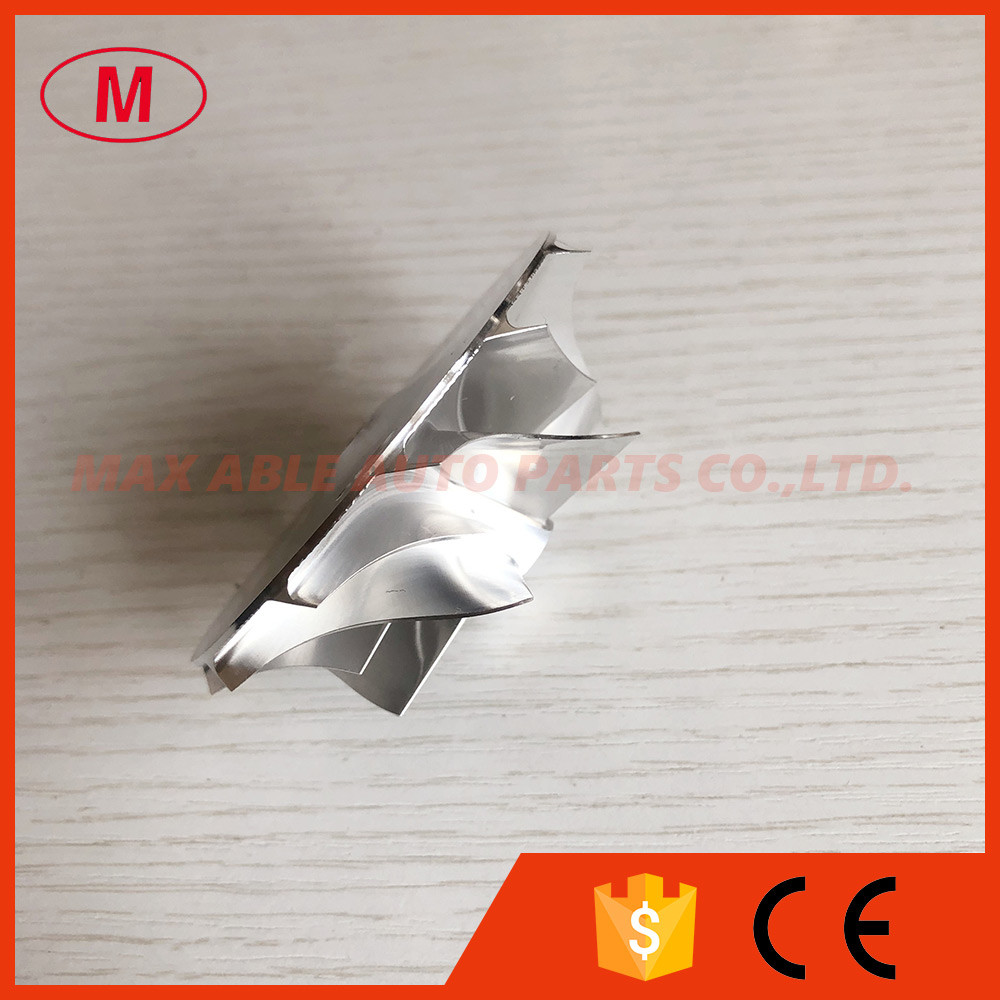

TD04HL 18G 50.38/68.00mm 6+6 blades forward high performance turbo milling/billet compressor wheel for Images
